Image Recognition (9 types of National Flowers)

													#Import packages and models
from torch.utils.data import Dataset,DataLoader
from torchvision.datasets import ImageFolder
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import timm
from tqdm.notebook import tqdm
import torch
import torch.nn as nn
import torch.optim as optim
import torchvision.transforms as transforms
🗸 4.3s
#Declare FlowersDataSet class
class FlowersDataSet(Dataset):
	def __init__(self,data_dir,transform=None):
		self.data=ImageFolder(data_dir,transform=transform)
	def __len__(self):
		return len(self.data)
	def __getitem__(self,idx):
		return self.data[idx]
	@property
	def classes(self):
		return self.data.classes
🗸 0.0s
data_dir='../data/Image recognition/flowerdataset/whole data' #original_dataset
noc= 9 #Number of classes
original_dataset=FlowersDataSet(data_dir)
🗸 0.0s
len(original_dataset) #length of the dataset
🗸 0.0s4481

#get any image and its label from the dataset to confirm it is working
image,label=original_dataset[5]
print(label)
🗸 0.0s0


#Get a dictionary associating target values with folder names
target_to_class={v:k for k,v in ImageFolder(data_dir).class_to_idx.items()}
print(target_to_class)
🗸 0.0s{0: 'Daisy', 1: 'Dandelion', 2: 'Lavender', 3: 'Lilly', 4: 'Lotus', 5: 'Orchid', 6: 'Rose', 7: 'Sunflower', 8: 'Tulip'}

#Making sure that images are always 160x160
transform=transforms.Compose([
	transforms.Resize((160,160)),
	transforms.ToTensor(),
])
🗸 0.0s
#Train-test spliting
original_dataset=FlowersDataSet(data_dir,transform)
train_size=int(0.6*len(original_dataset))
valid_size=int(0.2*len(original_dataset))
test_size=len(original_dataset)-(train_size+valid_size)
train_size+=len(original_dataset)-(train_size+valid_size+test_size)

train_dataset, valid_dataset, test_dataset=torch.utils.data.random_split(
	original_dataset, [train_size, valid_size, test_size]
	)

#Running it for a random image
image,label=train_dataset[100]
print(image)
print(image.shape)
🗸 0.2stensor([[[1.0000, 1.0000, 1.0000,  ..., 1.0000, 1.0000, 1.0000],
			[1.0000, 1.0000, 1.0000,  ..., 1.0000, 1.0000, 1.0000],
			[1.0000, 1.0000, 1.0000,  ..., 1.0000, 1.0000, 1.0000],
			...,
			[0.0039, 0.0039, 0.0039,  ..., 0.0039, 0.0039, 0.0039],
			[0.0039, 0.0039, 0.0039,  ..., 0.0039, 0.0039, 0.0039],
			[0.0039, 0.0039, 0.0039,  ..., 0.0039, 0.0039, 0.0039]],

			[[1.0000, 1.0000, 1.0000,  ..., 1.0000, 1.0000, 1.0000],
			[1.0000, 1.0000, 1.0000,  ..., 1.0000, 1.0000, 1.0000],
			[1.0000, 1.0000, 1.0000,  ..., 1.0000, 1.0000, 1.0000],
			...,
			[0.0039, 0.0039, 0.0039,  ..., 0.0039, 0.0039, 0.0039],
			[0.0039, 0.0039, 0.0039,  ..., 0.0039, 0.0039, 0.0039],
			[0.0039, 0.0039, 0.0039,  ..., 0.0039, 0.0039, 0.0039]],

			[[1.0000, 1.0000, 1.0000,  ..., 1.0000, 1.0000, 1.0000],
			[1.0000, 1.0000, 1.0000,  ..., 1.0000, 1.0000, 1.0000],
			[1.0000, 1.0000, 1.0000,  ..., 1.0000, 1.0000, 1.0000],
			...,
			[0.0039, 0.0039, 0.0039,  ..., 0.0039, 0.0039, 0.0039],
			[0.0039, 0.0039, 0.0039,  ..., 0.0039, 0.0039, 0.0039],
			[0.0039, 0.0039, 0.0039,  ..., 0.0039, 0.0039, 0.0039]]])
torch.Size([3, 160, 160])

#iterate over the dataset using dataloader after batching for faster training
dataloader=DataLoader(train_dataset,batch_size=32,shuffle=True)
for images,labels in dataloader:
	break
images.shape,labels.shape
🗸 0.5s(torch.Size([32, 3, 160, 160]), torch.Size([32]))

#creating a pytorch model by inheriting from nn module
class SimpleFaceClassifier(nn.Module):
	def __init__(self,num_classes=noc):
	    super(SimpleFaceClassifier,self).__init__()

	    #Here we define all the parts of the model
	    self.base_model=timm.create_model('efficientnet_b0',pretrained=True)
	    self.features=nn.Sequential(*list(self.base_model.children())[:-1])
	    enet_out_size=self.base_model.classifier.in_features

	    #Make a classifier to resize to our number of classes
	    self.classifier = nn.Sequential(
	        nn.Flatten(),
	        nn.Linear(enet_out_size, num_classes)
	    )

	def forward(self,x):

	    #Connect these parts and return the output
	    x = self.features(x)
	    output = self.classifier(x)
	    return output
🗸 0.0s
#creating an instance of the classifier class to check
model=SimpleFaceClassifier(num_classes=noc)
print(str(model)[:500])
🗸 0.9sSimpleFlowerClassifier(
(base_model): EfficientNet(
  (conv_stem): Conv2d(3, 32, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
  (bn1): BatchNormAct2d(
	32, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True
	(drop): Identity()
	(act): SiLU(inplace=True)
  )
  (blocks): Sequential(
	(0): Sequential(
	  (0): DepthwiseSeparableConv(
		(conv_dw): Conv2d(32, 32, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), groups=32, bias=

#ensuring that model works without any errors
example_out=model(images)
example_out.shape
🗸 0.9storch.Size([32, 9])

#loss function
criterion=nn.CrossEntropyLoss()

#optimizer
optimizer=optim.Adam(model.parameters(),lr=0.001)
🗸 0.0s

#ensuring that the shapes match
criterion(example_out,labels)
print(example_out.shape,labels.shape)
🗸 0.0storch.Size([32, 9]) torch.Size([32])

transform=transforms.Compose(
    [
        transforms.Resize((160,160)),
        transforms.ToTensor(),
    ]
)
#create specific loader for these datasets
train_loader=DataLoader(train_dataset,batch_size=32,shuffle=True)
test_loader=DataLoader(test_dataset,batch_size=32,shuffle=False)
valid_loader=DataLoader(valid_dataset,batch_size=32,shuffle=False)
🗸 0.0s

#We define the device for the model to run on:
device=torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')
device
🗸 0.0sdevice(type='cuda', index=0)

#running through the entire dataset
num_epochs=2					#number of times the model goes through the data
train_losses,valid_losses,epochs=[],[],[]	#lists to catch 'training losses', 'validation losses' and epochs.
model=SimpleFlowerClassifier(num_classes=noc)	#calling the model 'SimpleFlowerClassifier'
model.to(device)				#moving the model to the GPU

#Loss function
criterion=nn.CrossEntropyLoss()

#Optimizer
optimizer=optim.Adam(model.parameters(),lr=0.001)

#looping through epochs (number of times the model goes through the data)
for epoch in range(num_epochs):
	model.train()							#set the model to train
	running_loss=0.0						#setting a temporary loss variable to '0'

	#looping through the training dataset loader
	for images,labels in tqdm(train_loader,desc='Training Loop'):
		images,labels=images.to(device),labels.to(device)	#moving the images and labels to the GPU
		optimizer.zero_grad()					#clear the optimizer gradients
		outputs=model(images)					#catching the outputs after running through the model
		loss=criterion(outputs,labels)			#comparing the output to the labels and
									#assigning a 'loss' through loss function
		loss.backward()					#compute the gradient according to the loss
		optimizer.step()					#update the optimizer weights accordingly
		running_loss+=loss.item()*labels.size(0)		#increments the 'running loss' by the product of
									#current loss and the 'batch size'

	#calculating the training loss by dividing the 'running loss' by the length of 'training dataset'
	train_loss=running_loss/len(train_loader.dataset)

	#appending the current 'training loss' to the 'training losses' list
	train_losses.append(train_loss)

	model.eval() 								#set the model to train
	running_loss=0.0    							#setting a temporary loss variable to '0'
	with torch.no_grad():   						#To disable the gradient calculations

		#looping through the validation dataset loader
		for images,labels in tqdm(valid_loader,desc='Validation Loop'):
			images,labels=images.to(device),labels.to(device)	#moving the images and labels to the GPU
			outputs=model(images)					#catching the outputs
			loss=criterion(outputs,labels)			#comparing the output to the labels and
										#assigning a loss through loss function
			running_loss+=loss.item()*labels.size(0)		#increments the 'running loss' by the product
										#of current 'loss' and the 'batch size'

	#calculating the validation loss by dividing the 'running loss' by the length of 'validation dataset'
	valid_loss=running_loss/len(valid_loader.dataset)

	#appending the current 'validation loss' to the 'validation losses' list
	valid_losses.append(valid_loss)

	#appending the current 'epoch' number to the 'epochs' list; epoch+1 because epoch starts from 0
	epochs.append(epoch+1)

	#Print epoch statistics
	print(f"Epoch {epoch+1}/{num_epochs} - Training Loss: {train_loss}, Validation Loss: {valid_loss}")
🗸 19.4sTraining Loop: 100%  100%  84/84 [01:44<00:00, 1.41s/it]
Validation Loop: 100%  100%  28/28 [00:17<00:00, 1.31it/s]
Epoch 1/2 - Training Loss: 0.7699483739478248, Validation Loss: 0.5333579427429608

Training Loop: 100%  100%  84/84 [01:00<00:00, 2.18it/s]
Validation Loop: 100%  100%  10/10 28/28 [00:06<00:00, 4.67it/s]
Epoch 2/2 - Training Loss: 0.3766560448954503, Validation Loss: 0.4882693184273584

plt.plot(epochs,train_losses,label='Training Loss')
plt.plot(epochs,valid_losses,label='Validation Loss')
plt.xlabel('epochs')
plt.ylabel('loss')
plt.legend()
plt.title('Loss over epochs')
plt.show()
🗸 0.1s

#Load and preprocess the image:
def preprocess_image(image_path,transform):
	image=Image.open(image_path).convert('RGB')
	return image,transform(image).unsqueeze(0)

#Predict using the model:
def predict(model, image_tensor,device):
	model.eval()
	with torch.no_grad():
		image_tensor=image_tensor.to(device)
		outputs=model(image_tensor)
		probabilities =torch.nn.functional.softmax(outputs,dim=1)
	return probabilities.cpu().numpy().flatten()

#Visualization
def visualize_predictions(original_image,probabilities,class_names):
	fig,axarr=plt.subplots(1,2,figsize=(12,25))
	#Display image
	axarr[0].imshow(original_image)
	axarr[0].axis('off')
	#Display predictions
	axarr[1].barh(class_names,probabilities)
	axarr[1].set_xlabel('Probabilities')
	axarr[1].set_ylabel('Class Predictions')
	axarr[1].set_xlim(0,1)

	plt.tight_layout()
	plt.show()

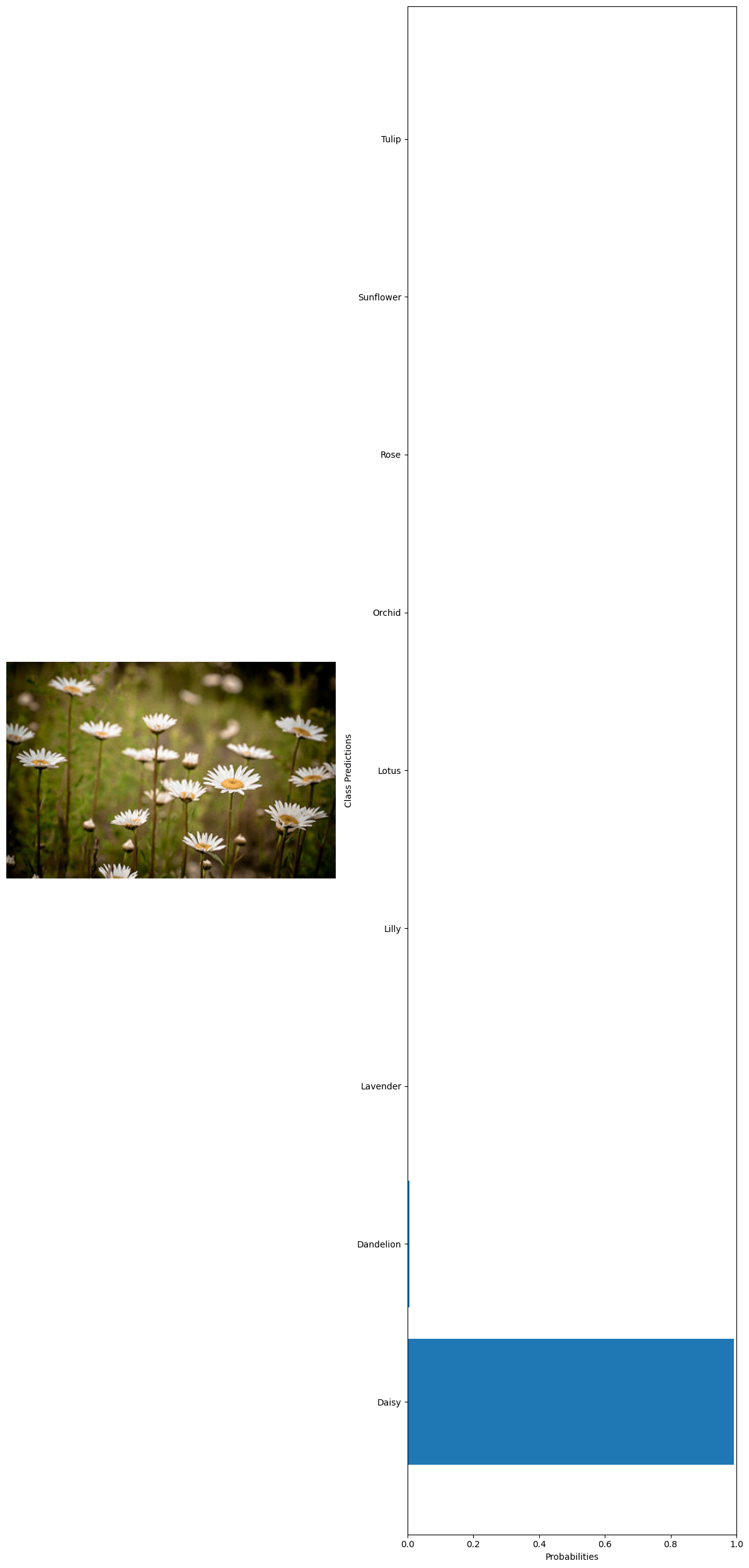

#Example using a hard-coded image
test_image='../data/Image recognition/flowerdataset/whole data/Daisy/9350942387_5b1d043c26_n.jpg'
transform=transforms.Compose(
	[
		transforms.Resize((160,160)),
		transforms.ToTensor()
	]
)
original_image,image_tensor=preprocess_image(test_image,transform)
probabilities=predict(model,image_tensor,device)

#getting the class names from the model classifier
class_names = train_dataset.dataset.classes
visualize_predictions(original_image,probabilities,class_names)
🗸 0.5s

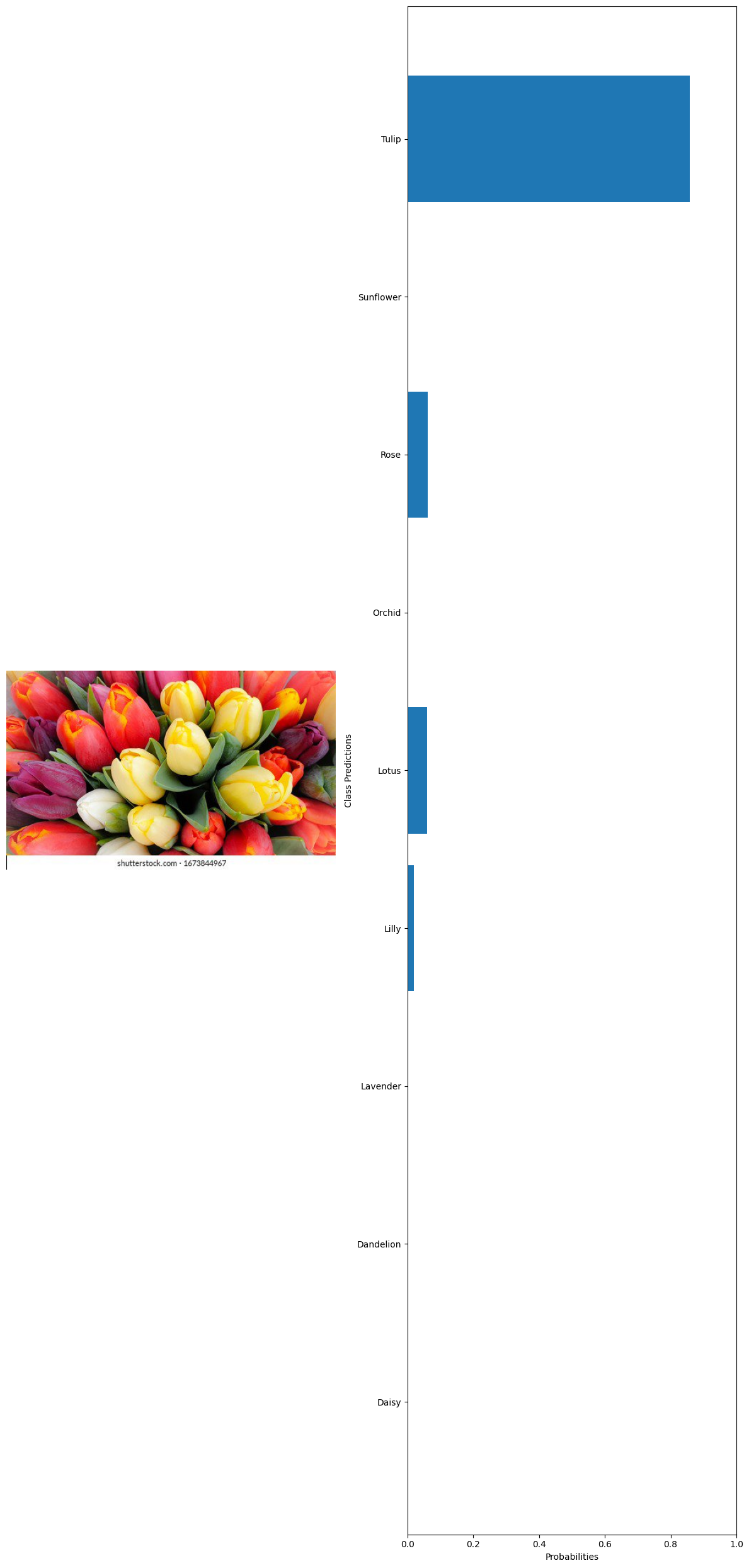

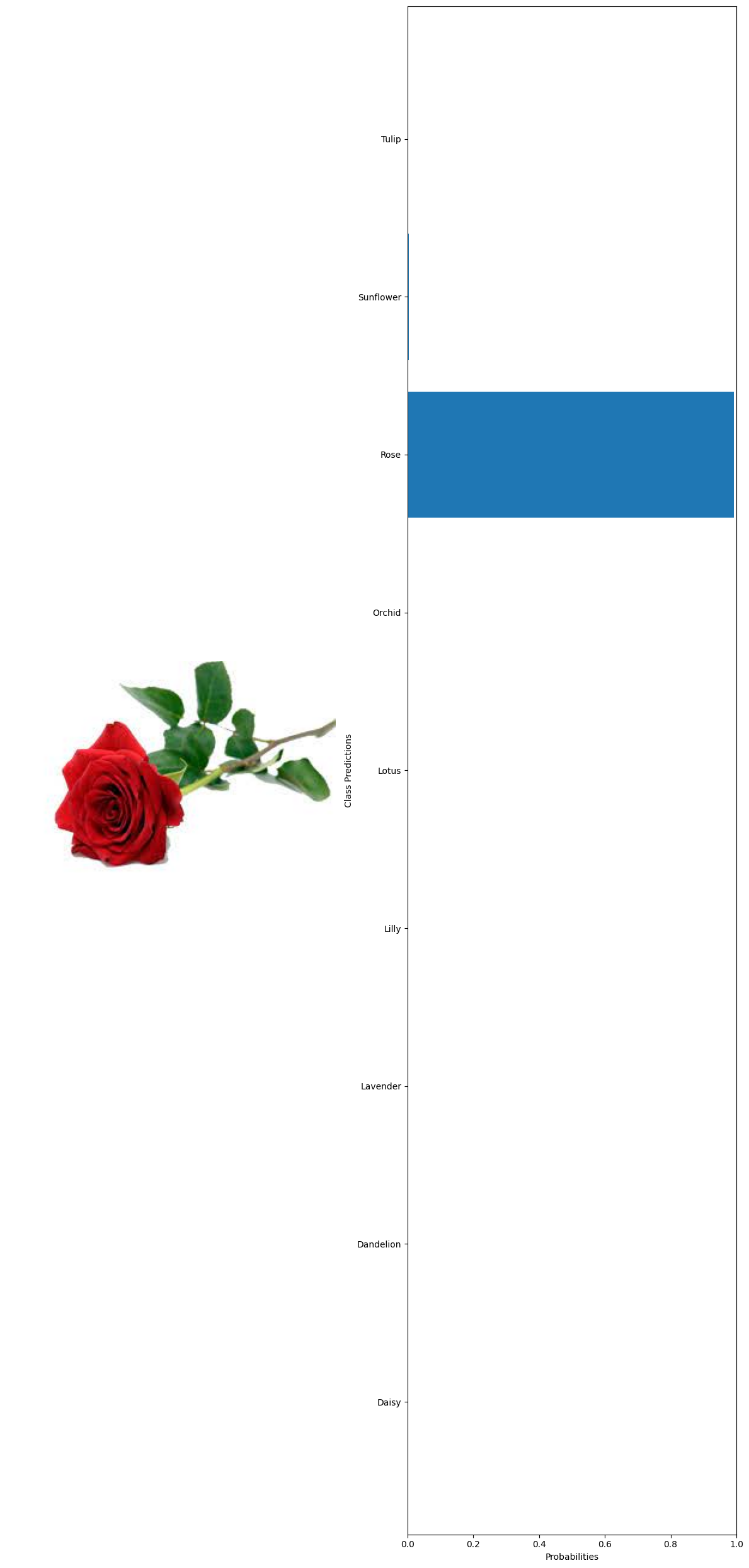

#getting 10 random images from the whole dataset
test_images=glob('../data/Image recognition/flowerdataset/whole data/*/*')
test_examples=np.random.choice(test_images,10)

#declaring a variable to calculate the number of current predictions
num_correct = 0

#getting the total number of images
total_examples = len(test_examples)

for example in test_examples:
	original_image, image_tensor = preprocess_image(example, transform)
	probabilities = predict(model, image_tensor, device)

	#getting the class names from the model classifier
	class_names = train_dataset.dataset.classes

	#extract true label from file path
	true_label = example.split('\\')[1]  #since class folder name is the label

	# Get predicted label
	predicted_label_index = np.argmax(probabilities)
	predicted_label = class_names[predicted_label_index]

	# Check if prediction is correct
	if predicted_label == true_label:
		num_correct += 1

	# Print the true label and the predicted label
	print("True label:", true_label)
	print("Predicted label:", predicted_label)

	visualize_predictions(original_image, probabilities, class_names)

#calculating the accuracy
accuracy = num_correct / total_examples
print("Accuracy:", accuracy)

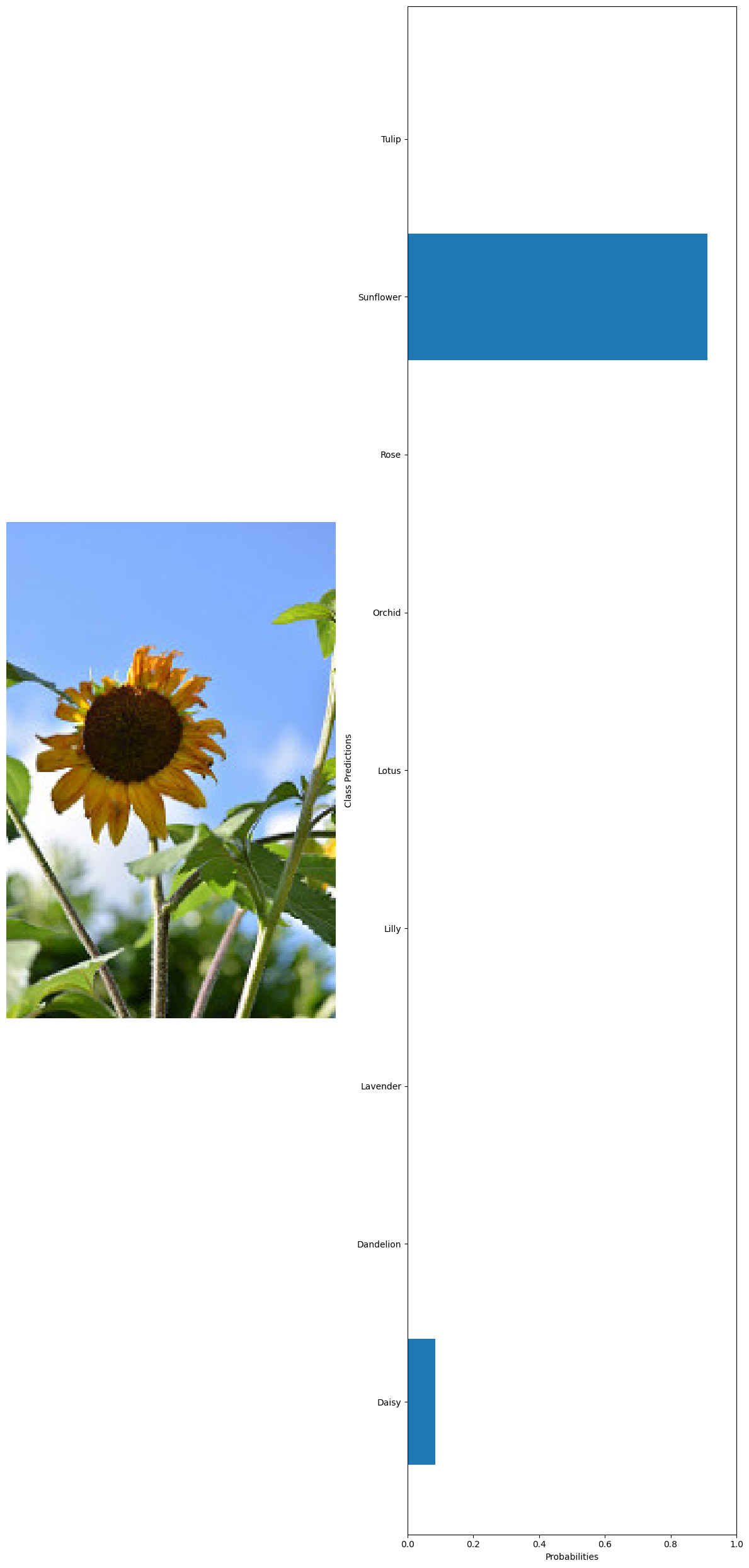

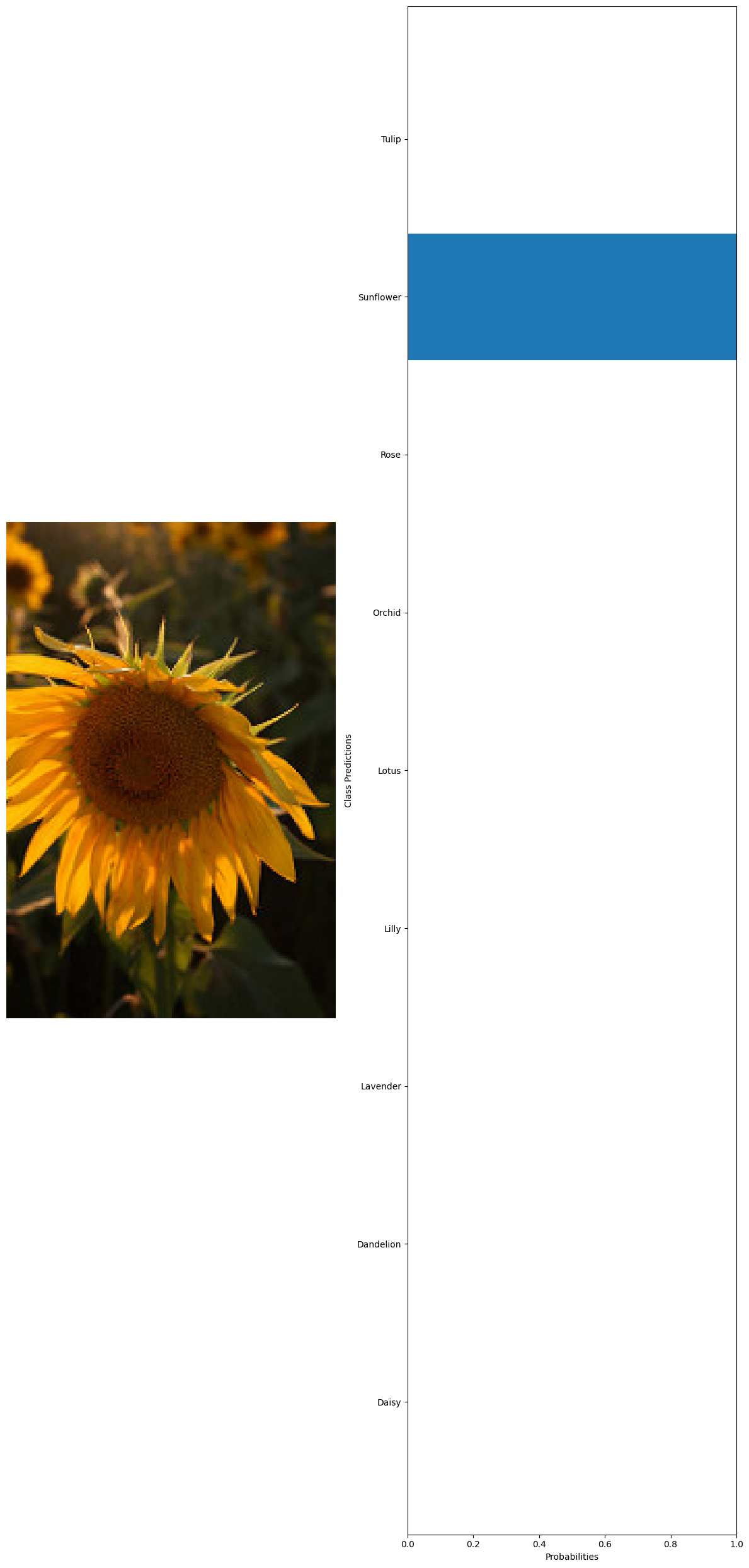

🗸 4.4sTrue label: Sunflower
Predicted label: Sunflower

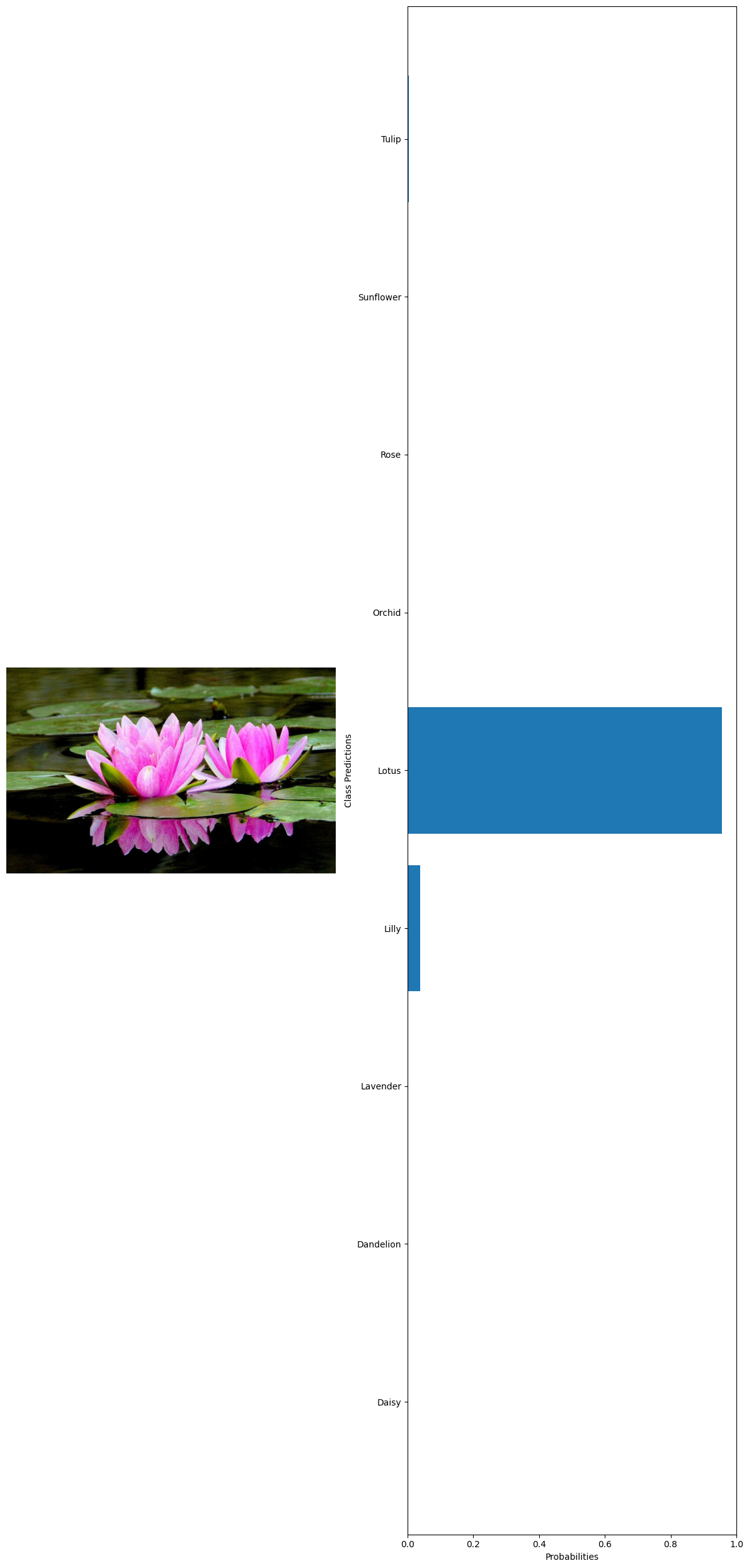

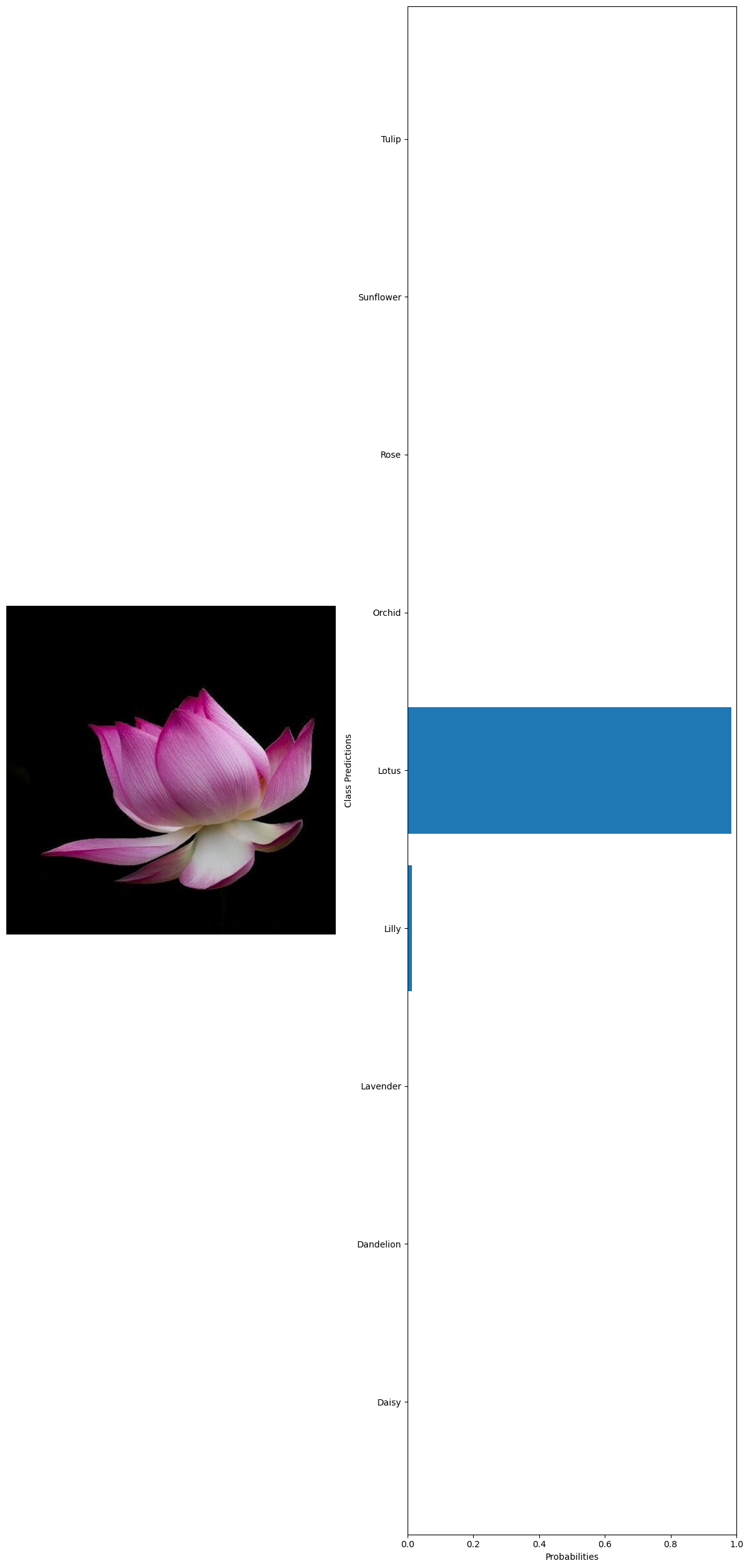

True label: Lotus
Predicted label: Lotus

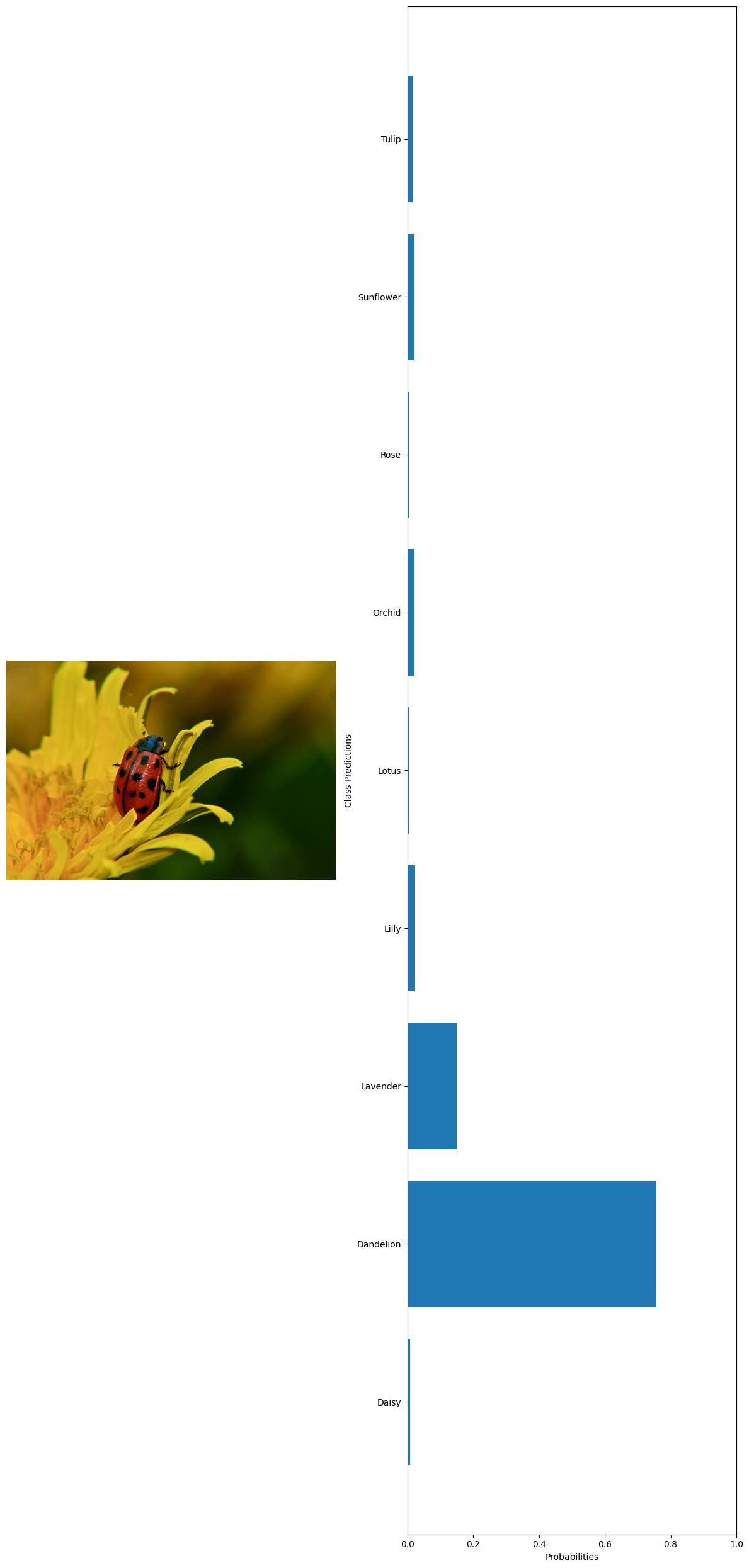

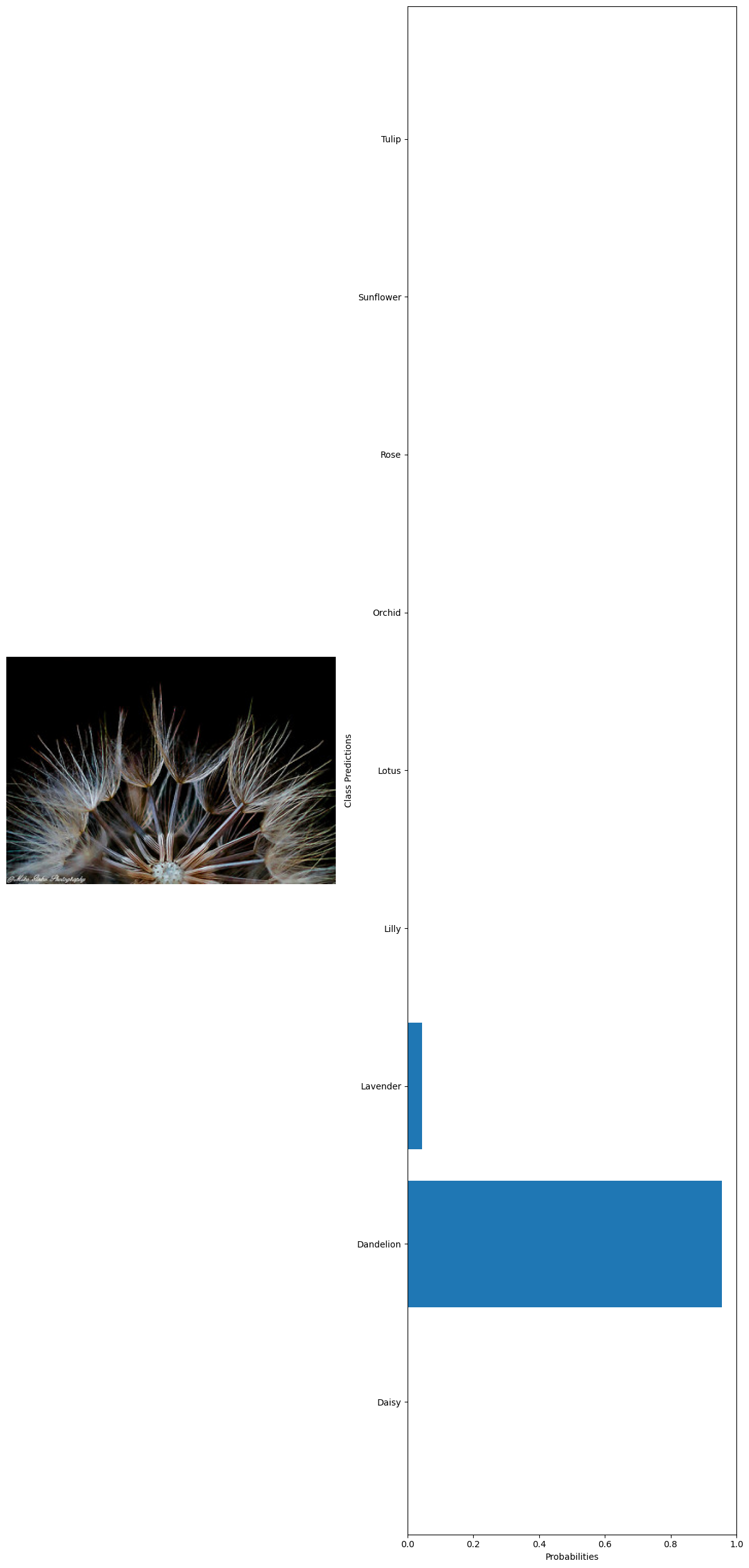

True label: Dandelion
Predicted label: Dandelion

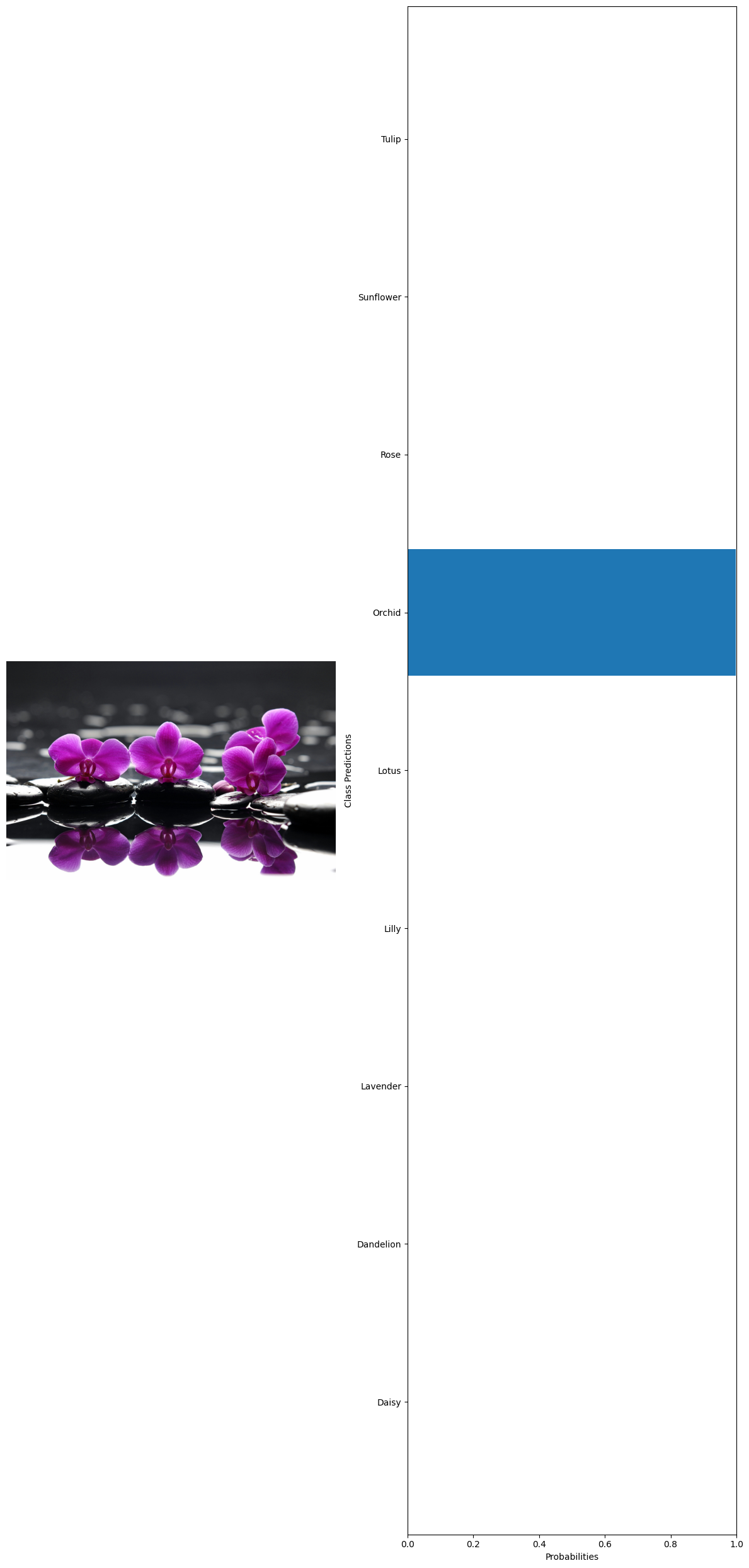

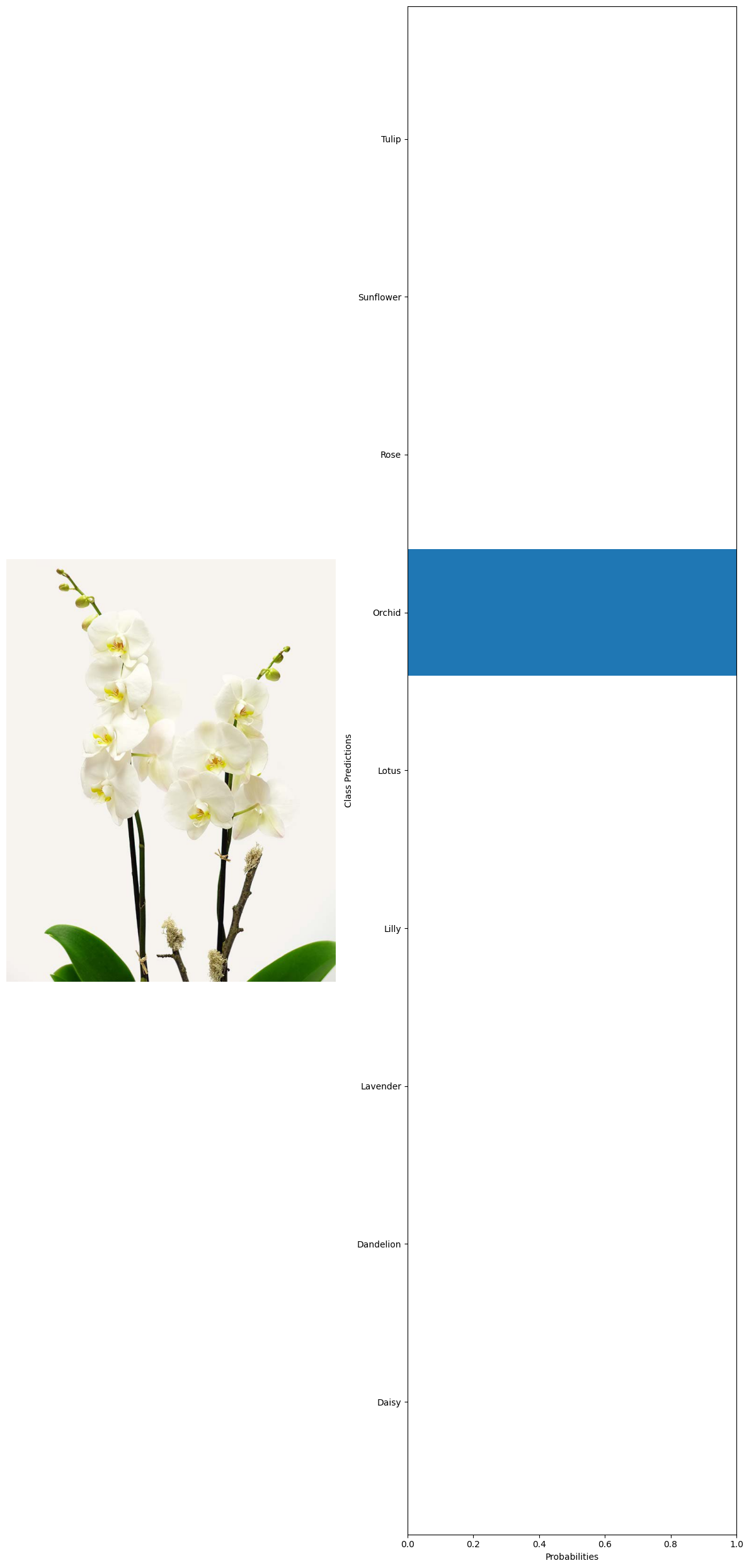

True label: Orchid
Predicted label: Orchid

True label: Tulip
Predicted label: Tulip

True label: Dandelion
Predicted label: Dandelion

True label: Sunflower
Predicted label: Sunflower

True label: Orchid
Predicted label: Orchid

True label: Lotus
Predicted label: Lotus

True label: Rose
Predicted label: Rose

Accuracy: 1.0
